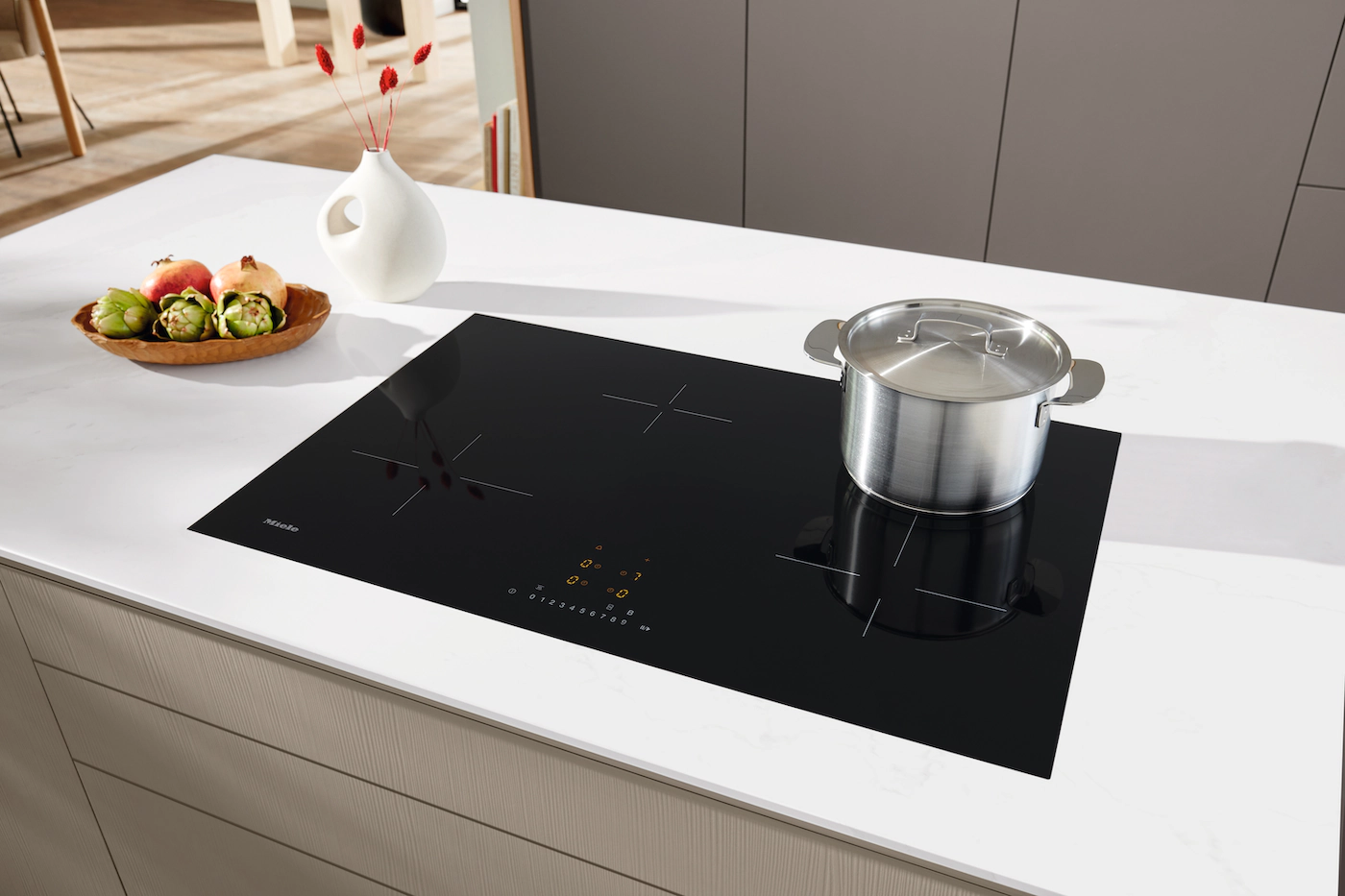

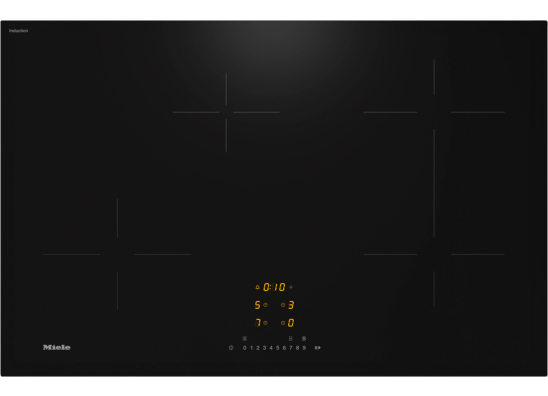

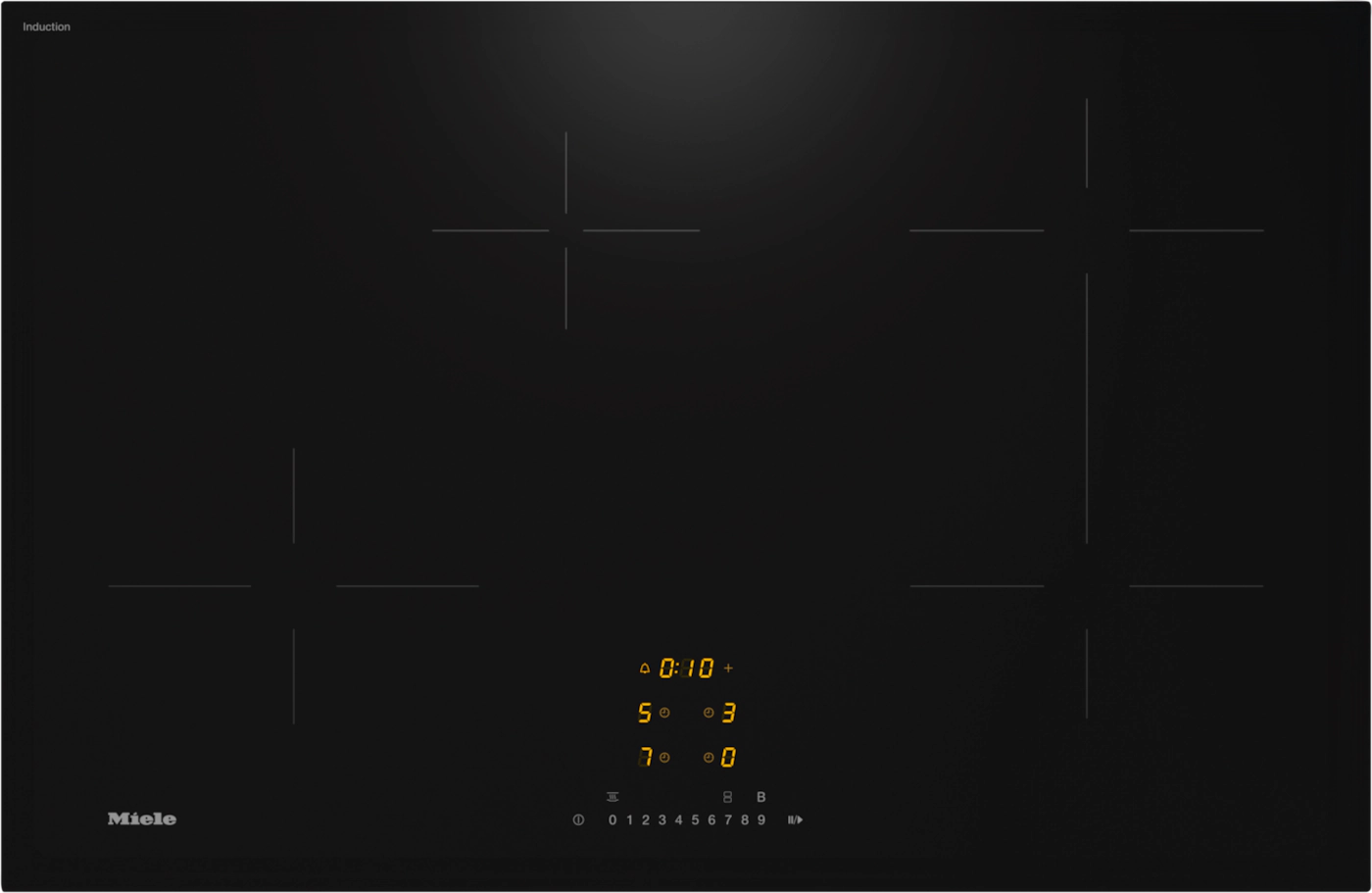

Induction cooktop with onset controls with flex cooking area for large pots and pans
- Quick selection via numerical keybank – ComfortSelect
- 4 cooking zones incl. 1 flex cooking area
- A width of 800 mm for surface-mounted or flush-fit installation
- Communication with the rangehood – automatic Conectivity function
- Dimensions (H x W x D) in mm
- 53 x 800 x 520
- Dimensions in mm (width)
- 800
- Dimensions in mm (height)
- 53
- Casing height incl. connection box in mm
- 53
- Cut-out dimensions (W x D) with surface-mounted installation in mm
- 750 mm - 780 mm x 490 mm - 500 mm
- Cut-out dimensions (W x D) with flush-fit installation in mm
- 780/804 x 500/524
- Dimensions in mm (depth)
- 520
- Cutout dimensions in mm (width) with surface-mounted installation
- 750 mm - 780 mm
- Cutout dimensions in mm (depth) with surface-mounted installation
- 490 mm - 500 mm
- Internal cutout dimensions in mm (width) with flush installation
- 780
- Internal cutout dimensions in mm (depth) with flush installation
- 500
- External cutout dimensions in mm (width) with flush installation
- 804
- External cutout dimensions in mm (depth) with flush installation
- 524
- Weight in kg
- 11
- Total rated load in kW
- 7.3
- Voltage in V
- 230
- Frequency in Hz
- 50-60
- Length of supply lead in m
- 1.4
